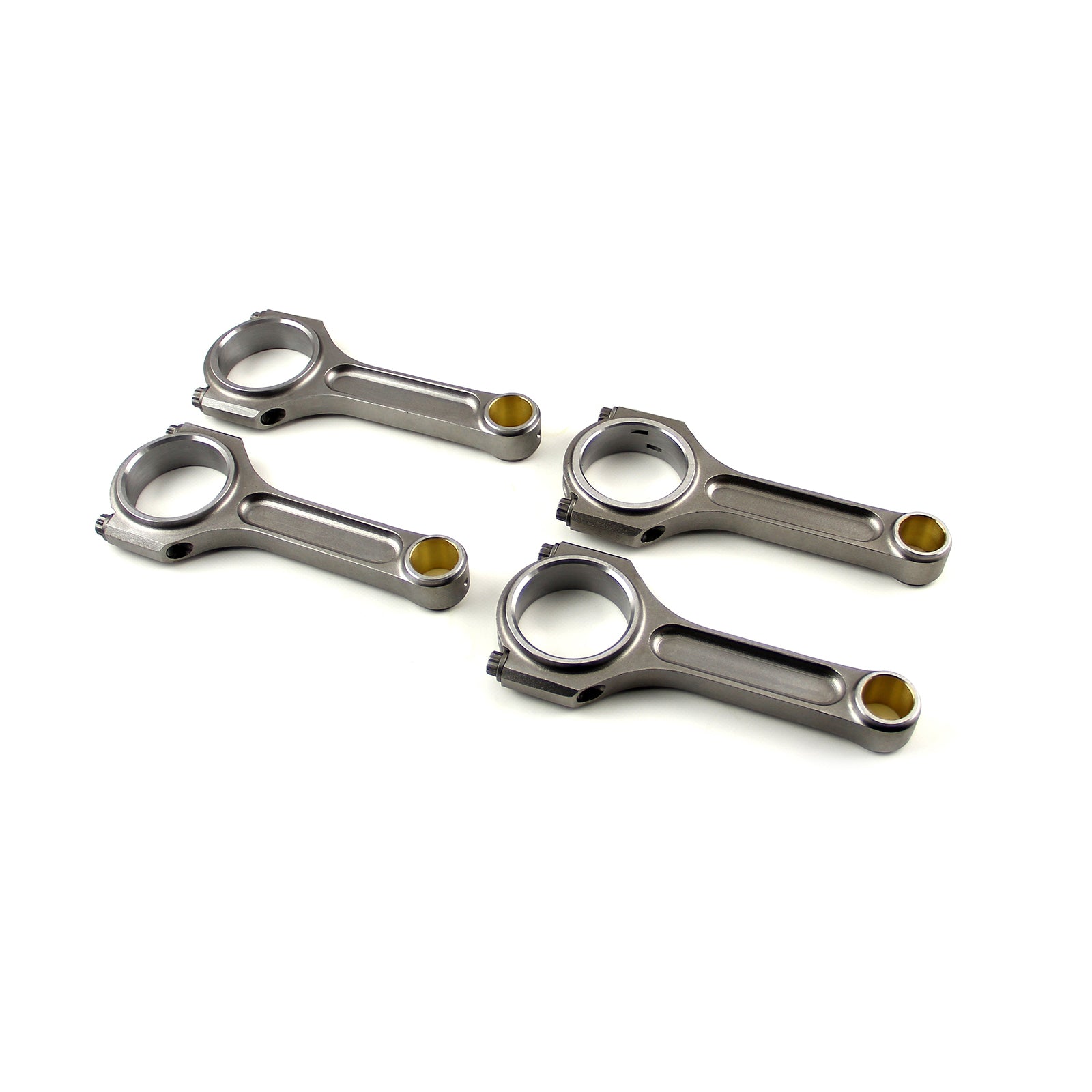

B18C I-Beam Race Connecting Rods | 4340 Chromoly ARP 8740 Bolts | Set of 4
$289.00
Sale price
$289.00
Regular price
$379.00
- š© 4340 CHROMOLY STEEL ā Aircraft-grade material, shot-peened and magnaflux tested for structural integrity
- ā” 500+ HP RATED @ 8,200 RPM ā Built for forced induction and high-revving B18C applications
- š§ ARP 8740 BOLTS ā 200,000 psi yield strength, 3/8" 12-point chromoly fasteners included
- š 5.430" C-TO-C LENGTH ā Stroker clearanced, floating wrist pin, 1.771" rod journal, .827" pin bore
- ā WEIGHT MATCHED SET ā All 4 rods matched from factory, zero balancing required, Speedmaster.
Ā
If you're building a B18C for boost or high RPM, the rods are where builds live or die. These aren't shelf queens ā they're magnaflux tested, shot-peened, and rated to 1000+ horsepower at 8,200 rpm.
The I-beam race profile gives you the strength of an H-beam design in a lighter package ā polished beams to eliminate stress risers, one-rib cap design for added bearing support, and ARP 8740 chromoly bolts at 200,000 psi yield strength.
Stroker clearanced from the factory. Floating pin. Weight matched set of 4.
If you know what a B18C is capable of, you already know why these matter.
Specs at a glance:
- Material: 4340 Chromoly Steel
- Length C-to-C: 5.430"
- Rod Journal: 1.771" | Pin Bore: .827"
- Bolt: ARP 8740 3/8" 12-point
- Weight: 547g | Rated: 1000+ hp / 8,200 rpm
- Quantity: Set of 4
